5-Axis CNC Porting Videos

4 Cylinder 4-Valve 5-Axis Video




Big Block Chevy Porting Programs

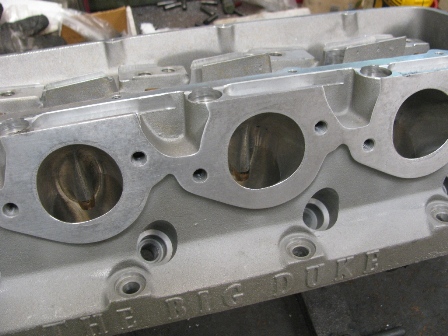

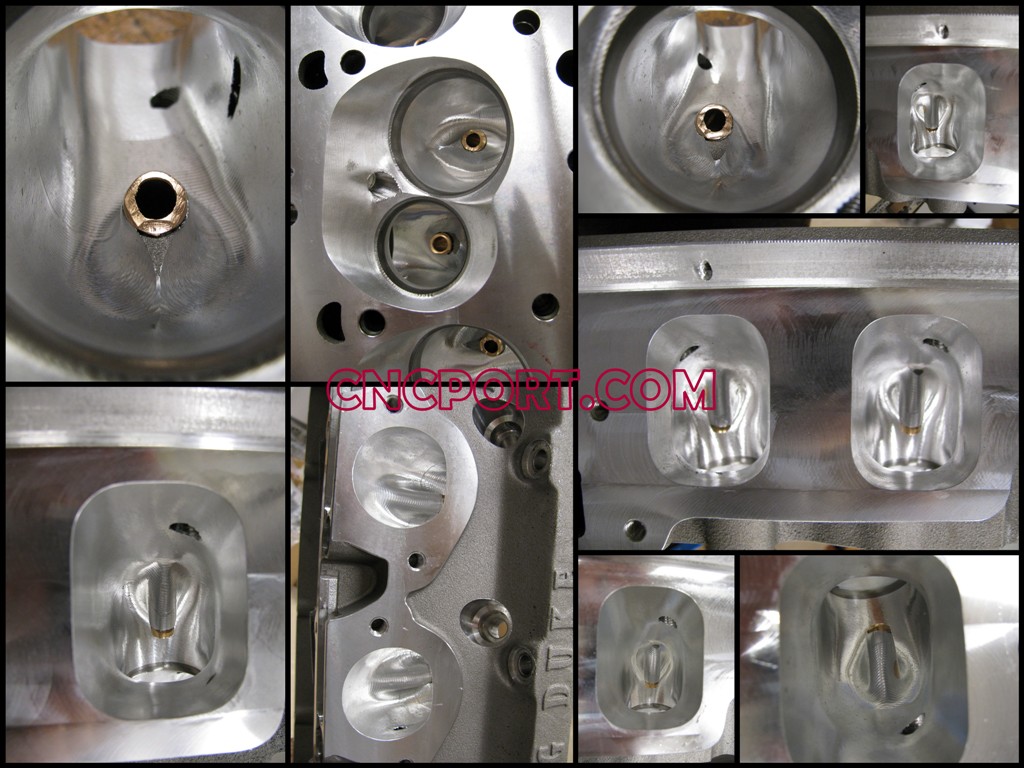

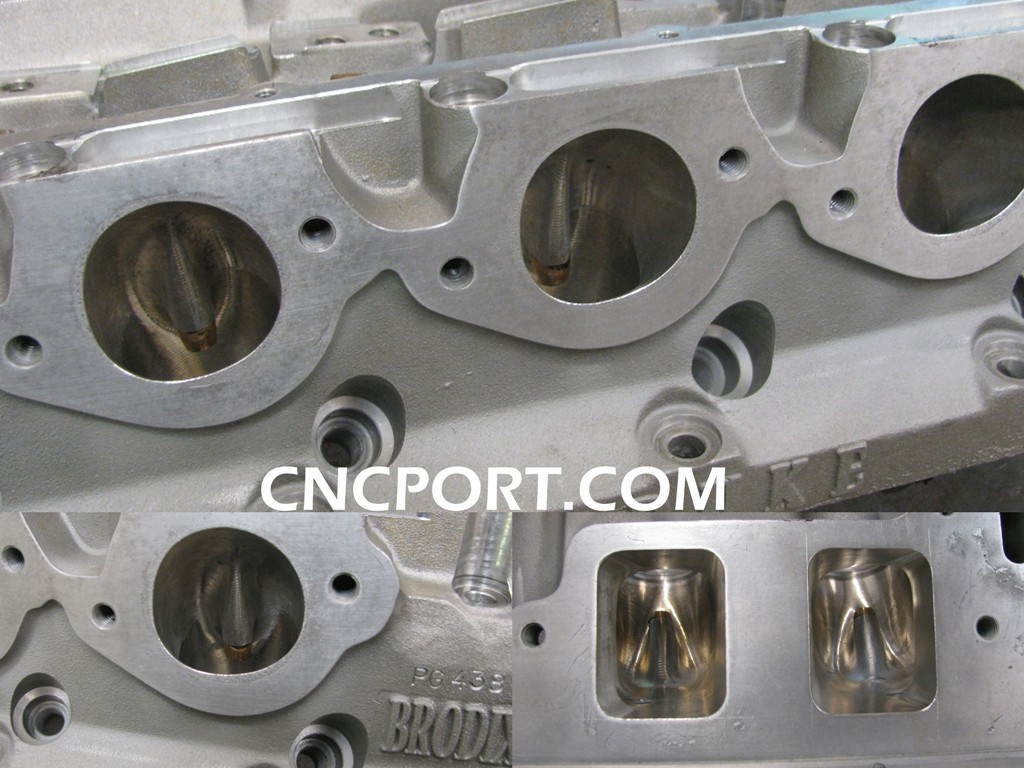

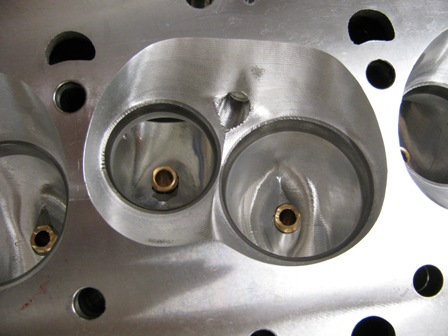

Brodix Big Duke 18 Degree PB1801

5-Axis CNC Porting of Intake and Exhaust Ports. CNC Combustion Chamber. 2.450" Intake Valve 1.900 Exhaust Valve. Pricing Includes Valve Job. Castings and Valvetrain Additional. ATT: Engine Builders, Available without Valve Job.

$1800.00

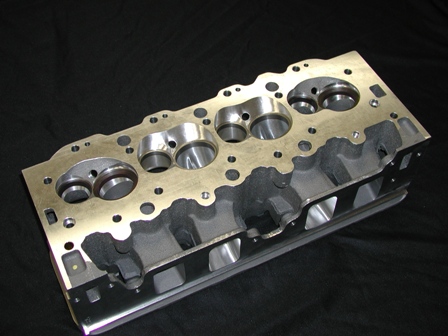

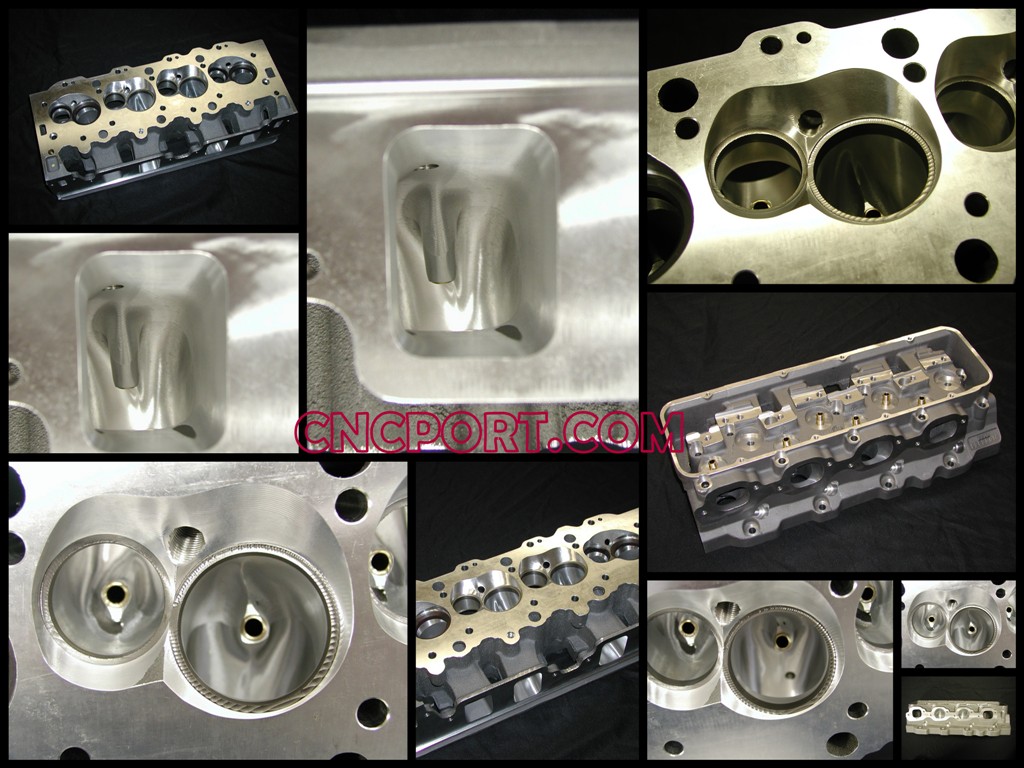

Dart Big Chief 14 Degree "385" Rectangular Port

5-Axis CNC Porting of Intake and Exhaust Ports. CNC Combustion Chamber. 2.500" Intake Valve 1.900 Exhaust Valve. 527 CFM at .800 Call for Flow Numbers. Pricing Includes Valve Job. Castings and Valvetrain Additional. ATT: Engine Builders, Available without Valve Job.

$1800.00

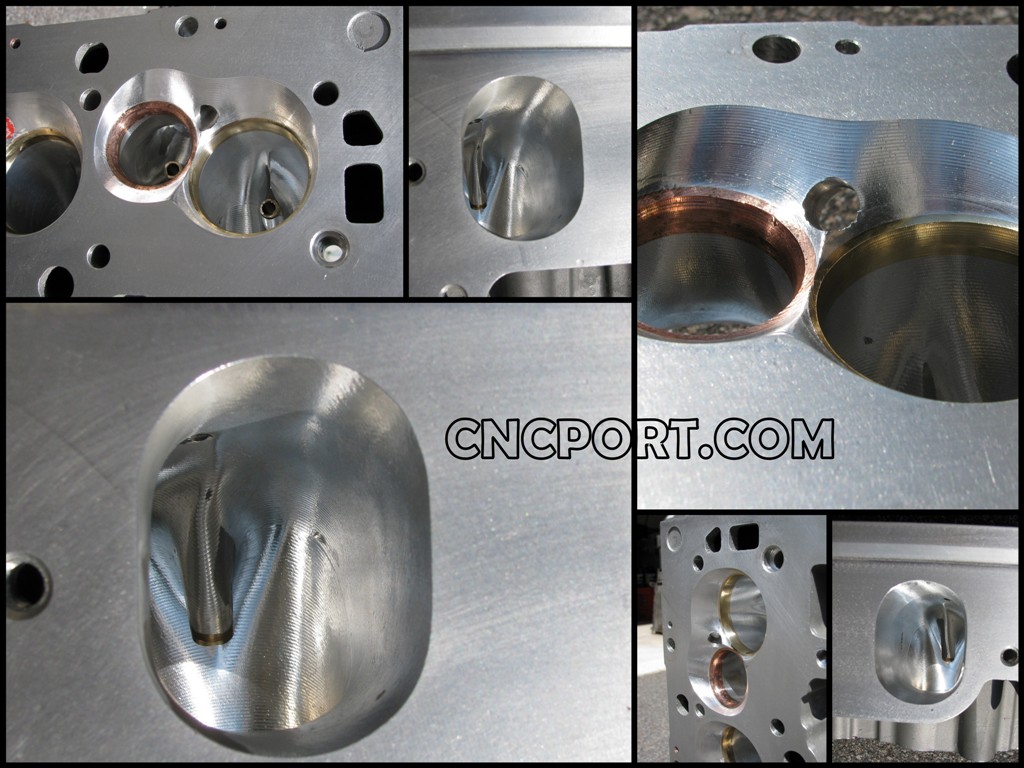

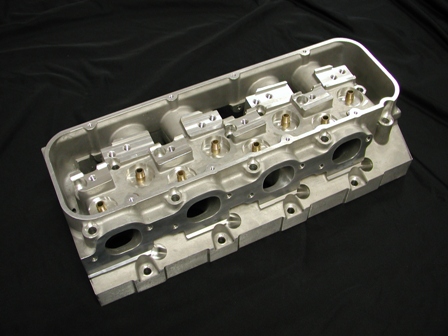

Pro-Filer 12 Degree Hitman Oval Port

5-Axis CNC Porting of Intake and Exhaust Ports. CNC Combustion Chambers. 2.520 Intake Valve & 1.820 Exhaust Valve. Flow Numbers Available. Pricing Includes Valve Job. Castings and Valvetrain Additional. ATT: Engine Builders, available without valve job.

$1800.00

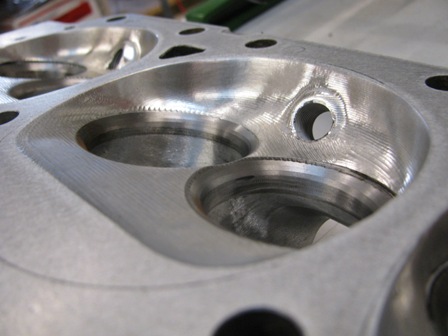

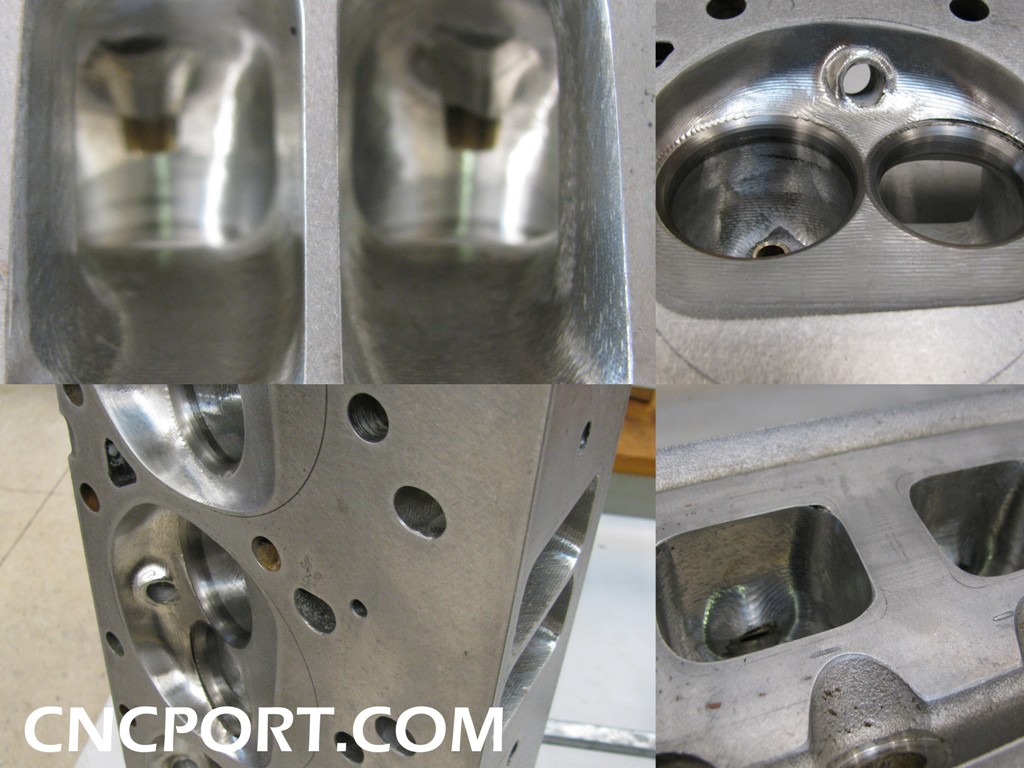

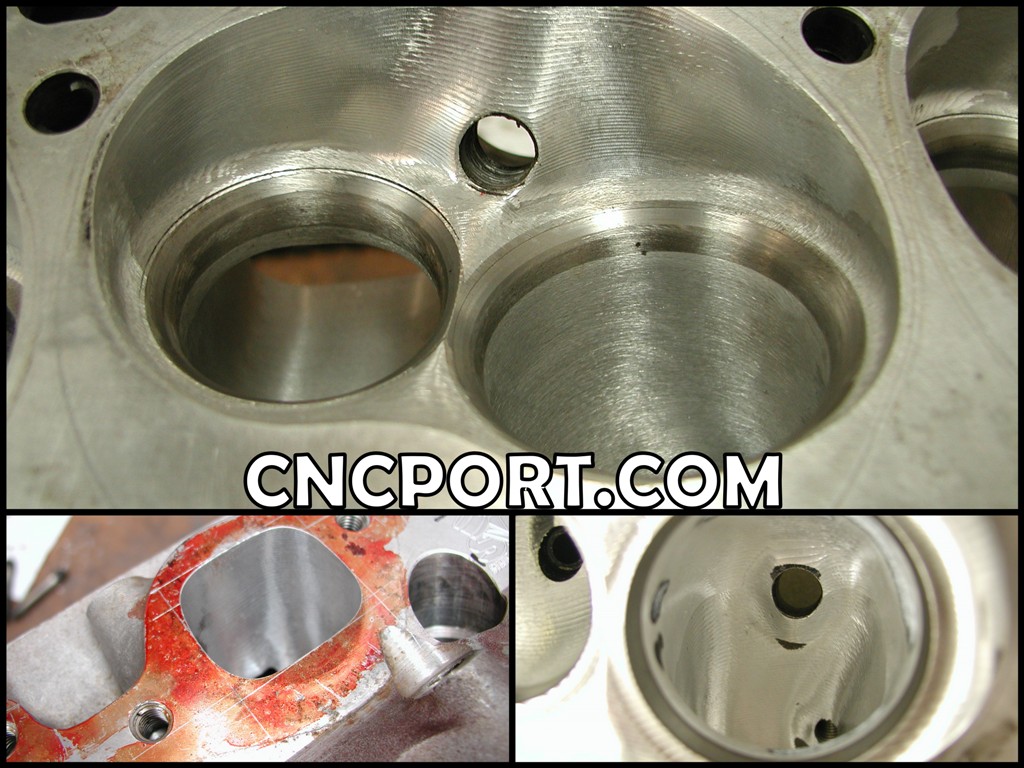

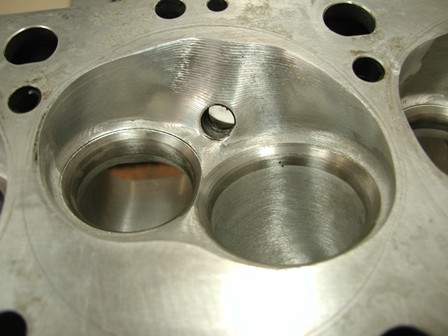

Edelbrock Performer RPM BBC Oval Port 6045

5-Axis CNC Porting of Intake and Exhaust Ports. CNC Combustion Chambers. 2.250 Intake Valve & 1.880 Exhaust Valve. SERDI Valve Job. 50 and 45 degree valve job available.

$1200.00

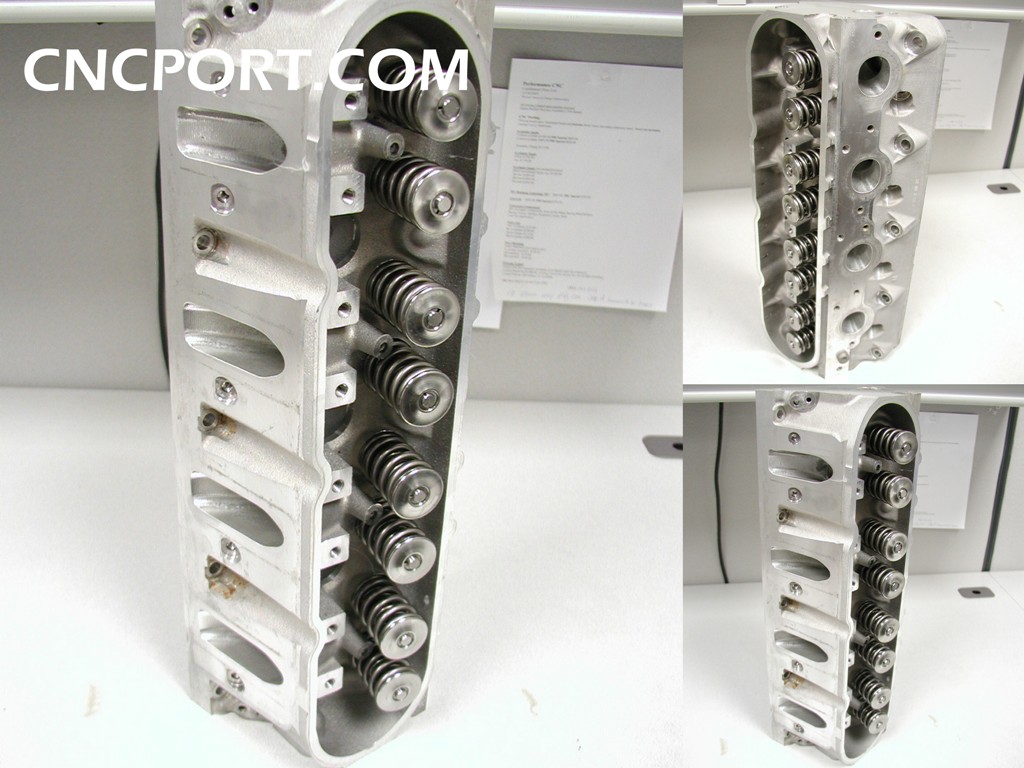

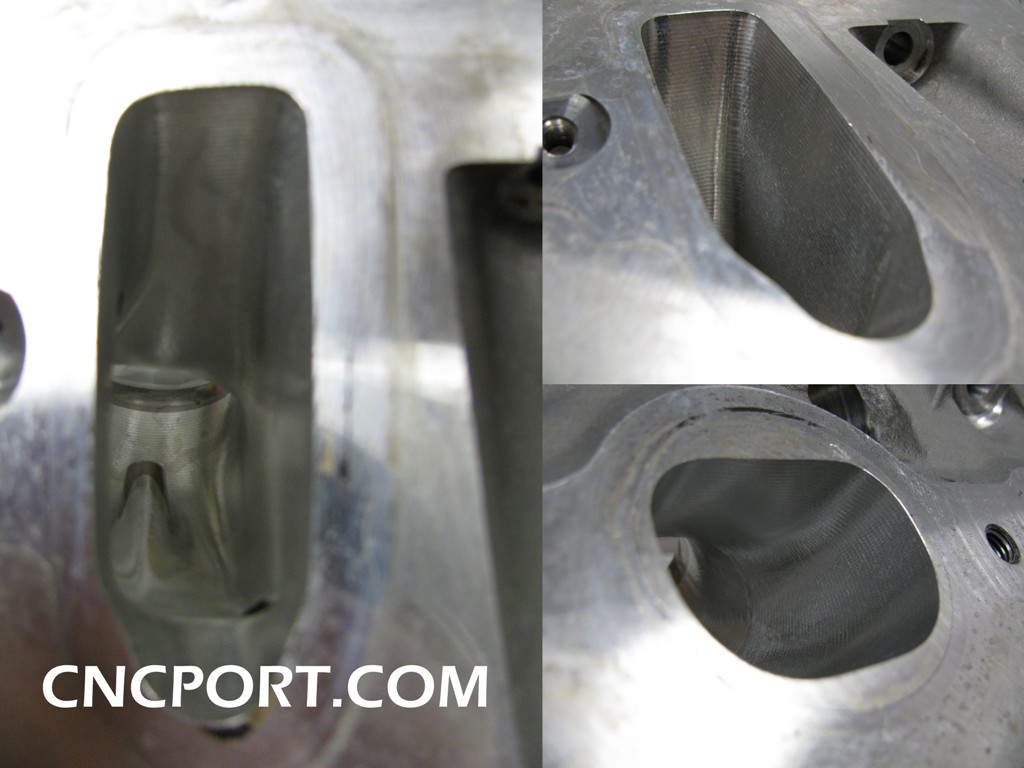

GM LSx Porting Programs

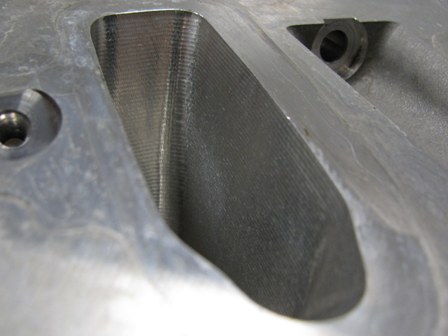

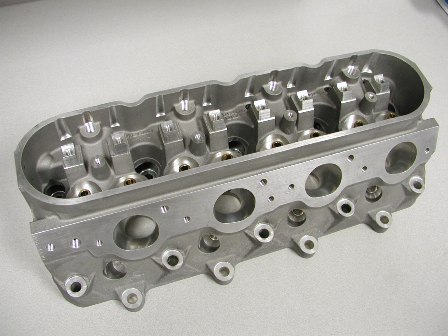

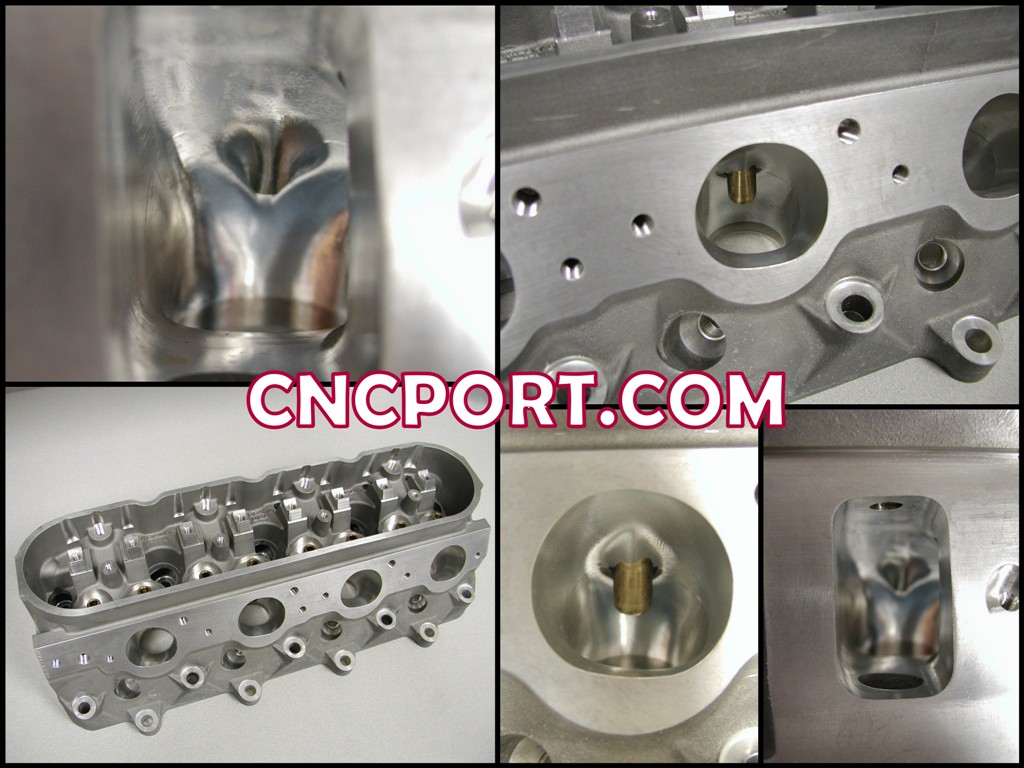

World Warhawk LS7X 12 Degree

The First CNC Company to Design and Release to Engine Builders a 5-Axis CNC Program for the Warhawk cylinder head. Includes CNC Porting Intake and Exhaust Ports. 2.250 Int 1.625 Ex. CNC Chambers. Call about Flow Specs. New Castings Available. Power Adder Only.

$1400.00



Big Block Chrysler Mopar Porting Programs

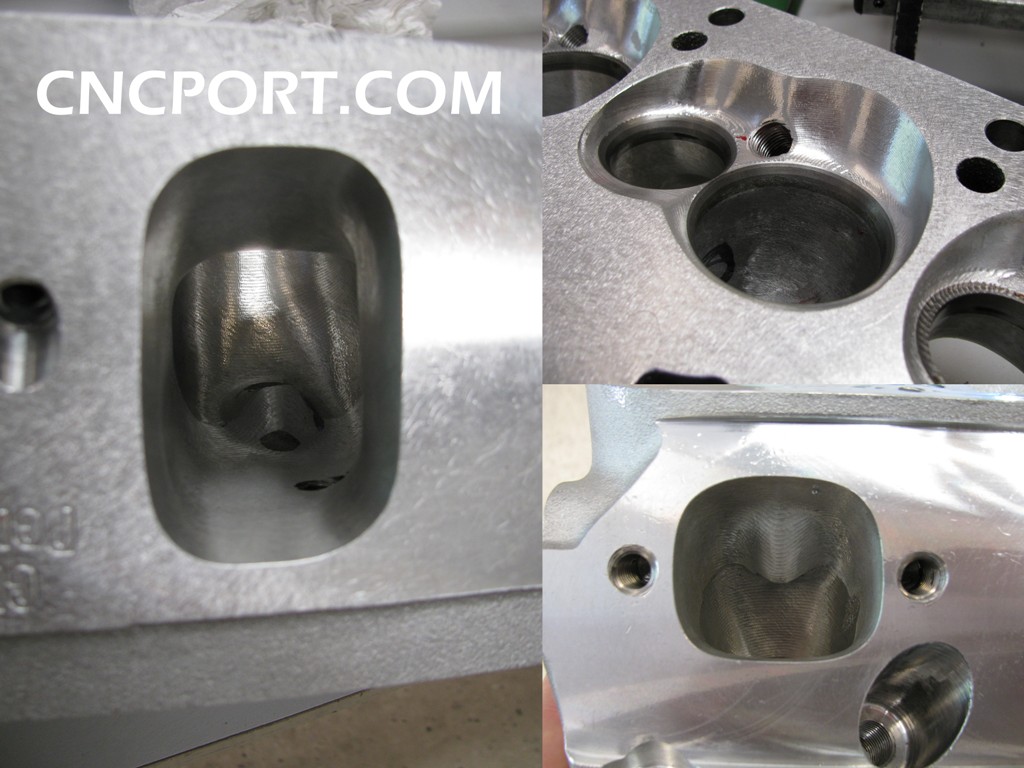

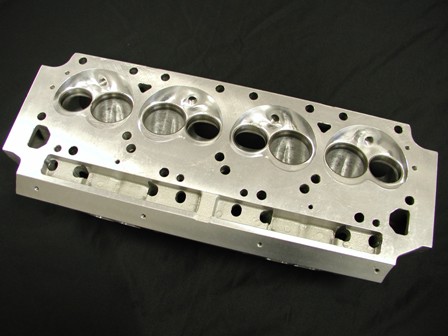

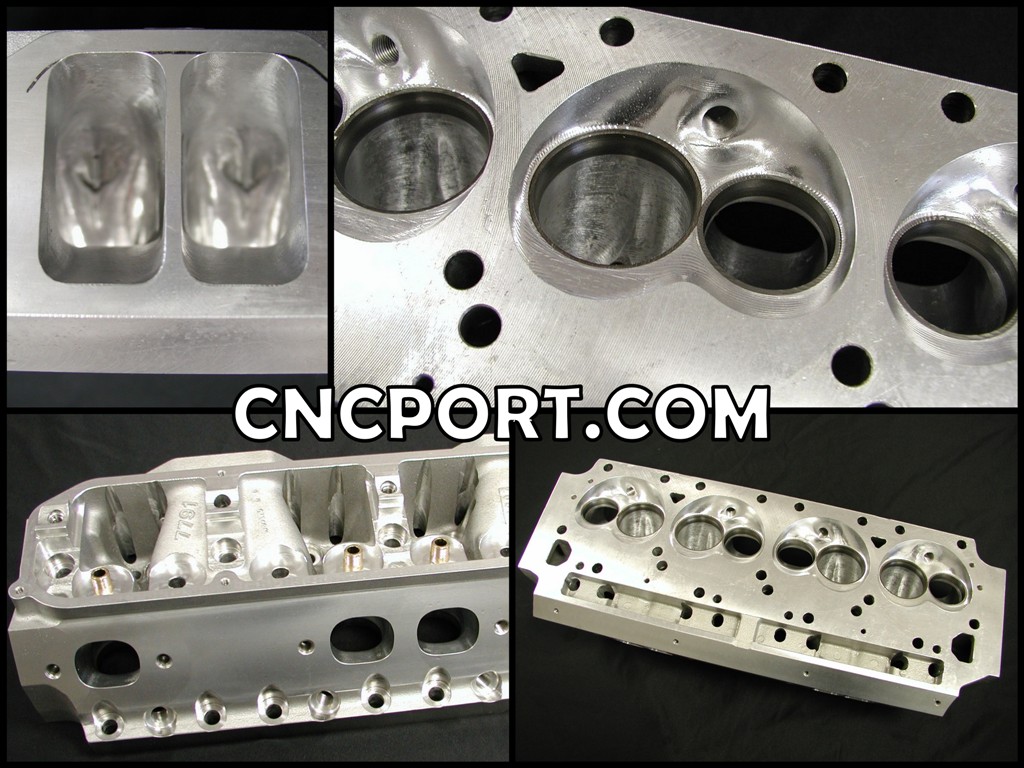

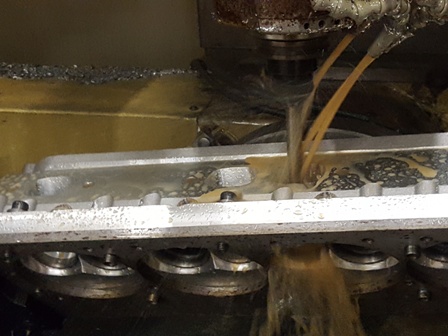

Edelbrock Victor 77919 Big Block

We took the Edelbrock 77919 and port it to Max Wedge Specs. It flows over 400cfm with a 50 degree valve job. 45 degree also available. Designed for 2.250 Intake 1.810 Exhaust Valves. New Castings Available.

$1200.00



Big Block Ford Porting Programs

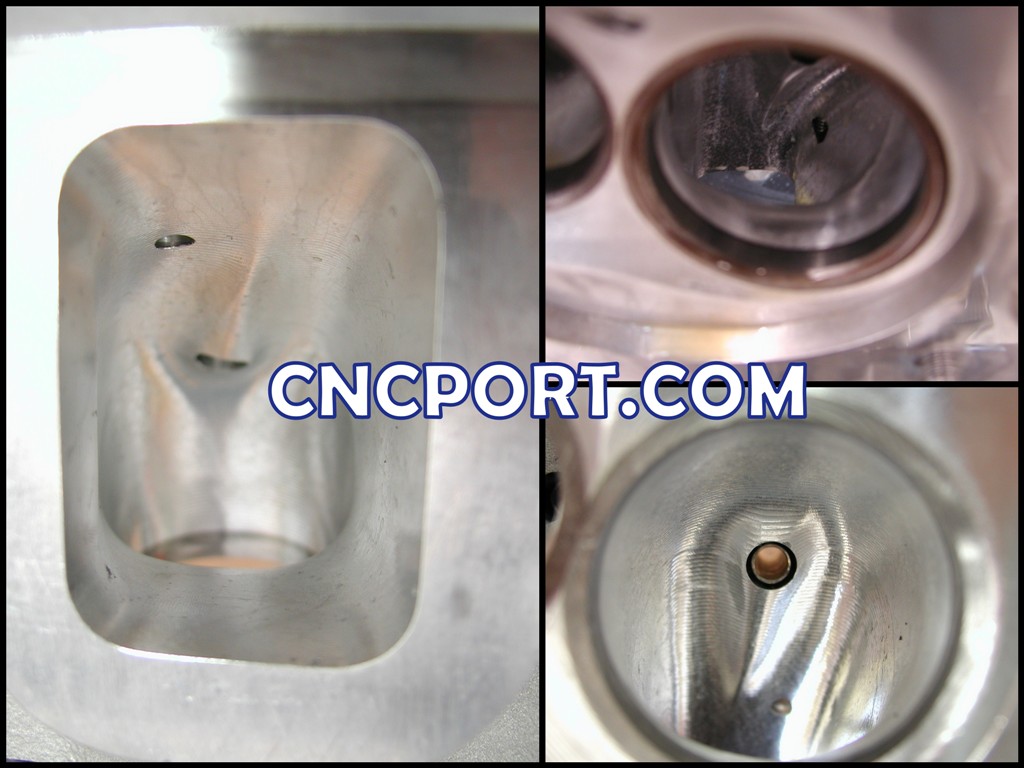

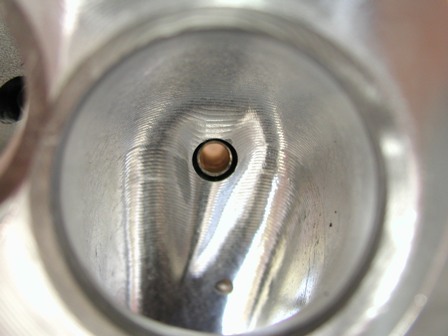

Ford Motorsports C460 BBF

5-Axis CNC Porting of Intake and Exhaust Ports. CNC Machined Combustion Chambers. Designed for 2.450 Intake Valve. SERDI 50 Degree Valve Job. Flows 520cfm at 0.800 Call/Email For Flow Details.

$1600.00

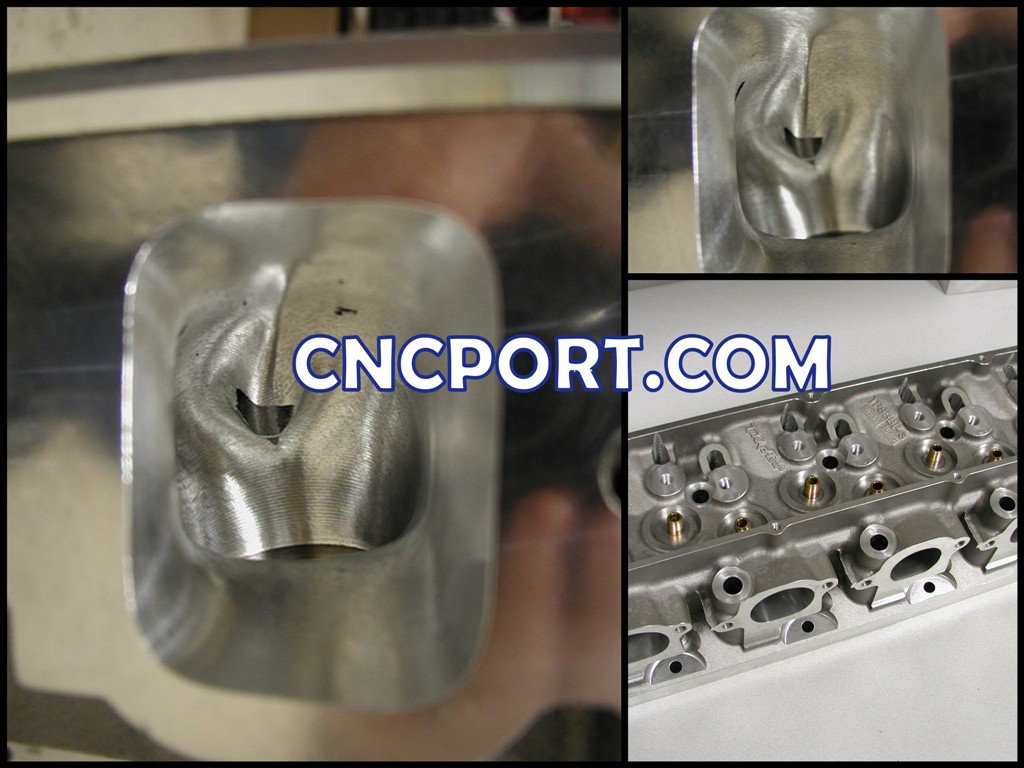

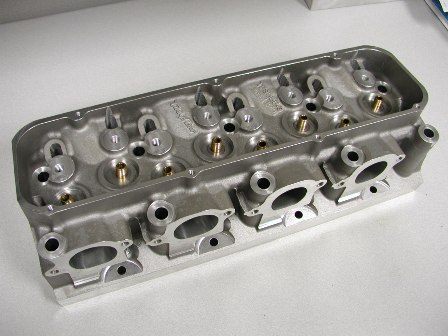

Trick Flow A460 BBF

5-Axis CNC Intake and Exhaust Ports. CNC Chambers. Multiple Programs Available from 2.350 to 2.450 Intake 1.880 Exhaust. SERDI Valve Job. Call For Flow Details. With Basic 570 CI Bottom End 1050 HP Attainable. New Castings Available Std or 18 Bolt. 2.450 Intake Only available for 18-Bolt Casting

$1400.00



Small Block Ford Porting Programs

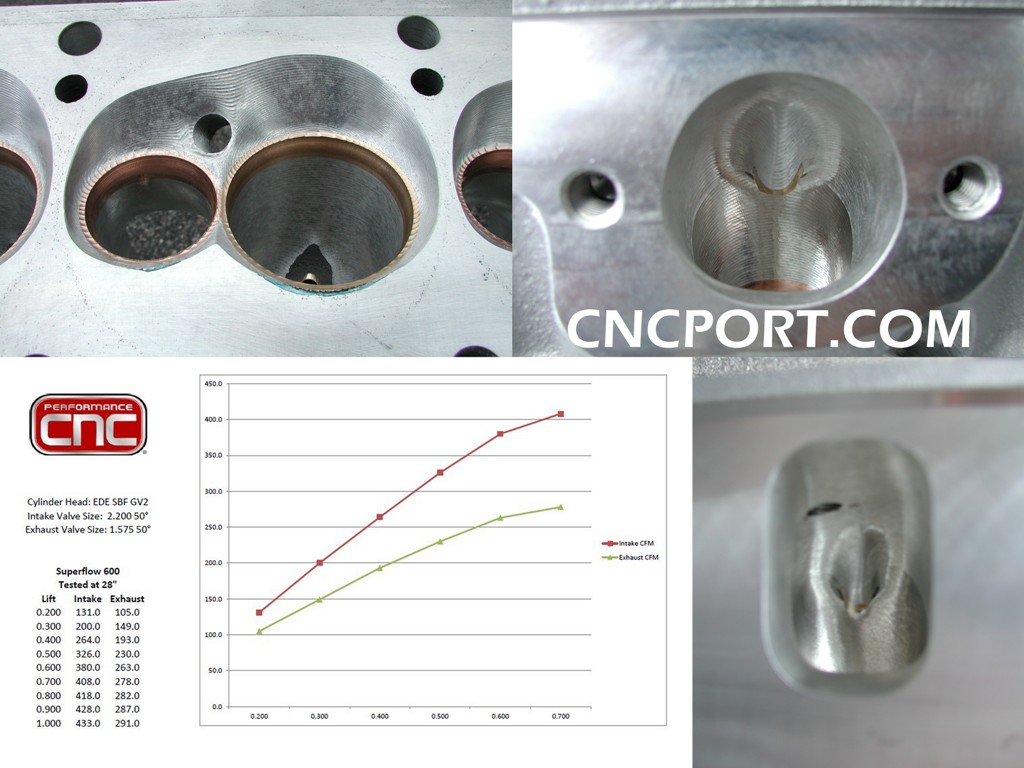

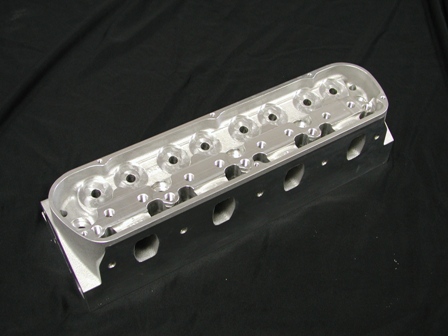

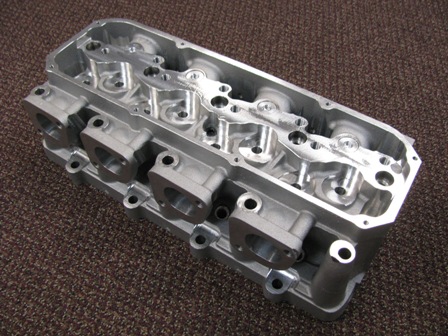

Edelbrock SBF Glidden Victor II

One of the Hottest & Baddest Inline Valve Windsor heads on the Market! Intake flows well over 400 cfm. Call for Complete Package Price Including Fully Ported Manifold. Do not bring a Knife to a Gun Fight!

$1500.00

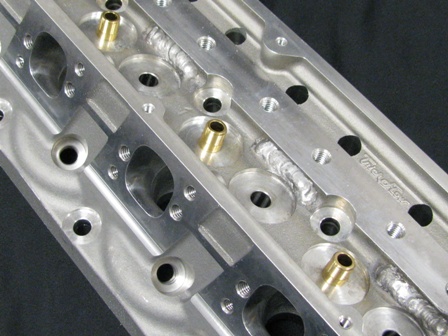

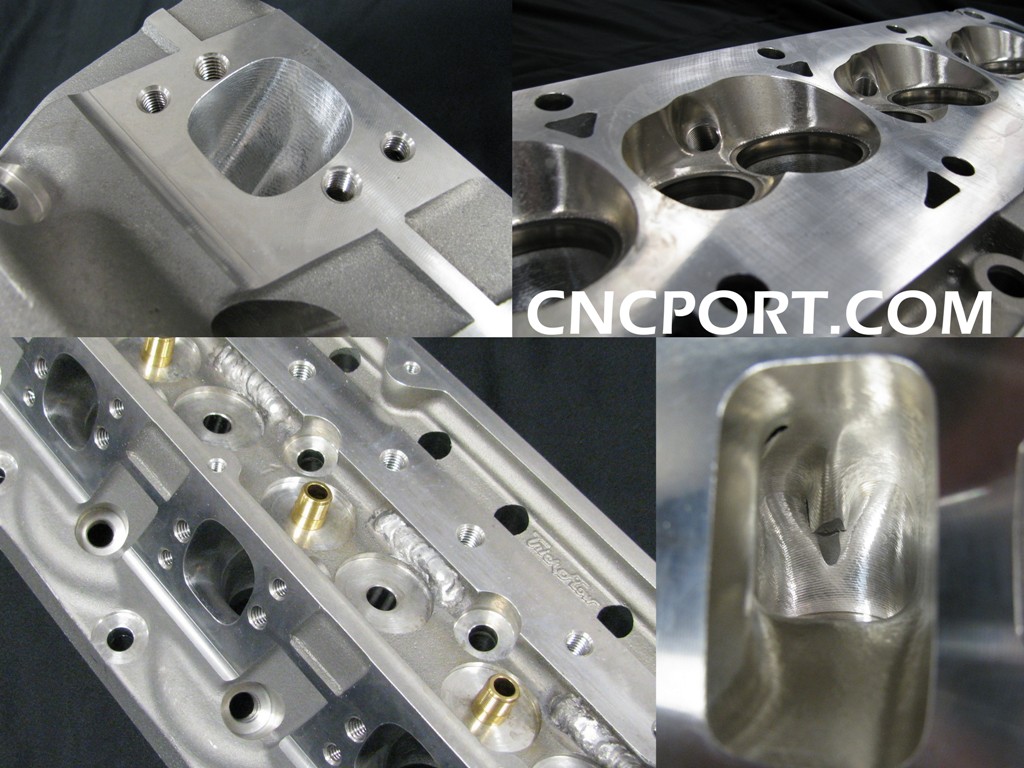

Trick Flow High Port 240

Trick Flow SBF High Port CNC Porting Intake and Exhaust Ports. 2.125 Int 1.600 Ex. CNC Chambers. Castings Available. Designed for 4.125+ Bore. The Ultimate 20 degree Inline Head for Large Windsor Motors. Multiple Exhaust Ports Available.

$1200.00


Trick Flow High Port

5-Axis CNC Porting, CNC Combustion Chambers, SERDI Valve Job. Port Designed for Street/Strip 408 CI. 2.055 with 4.030 Bore. Pricing based on Assembled New Trick Flow Castings, Manley Valves, .750 PAC Solid Roller Spring, Titanium Retainers, Spring Bases, & Viton Valve Seals. Ferrea Valves add $50. Add $80 for Nitrous Exhaust Valves.

$2975.00

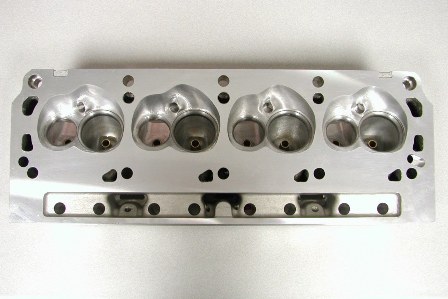

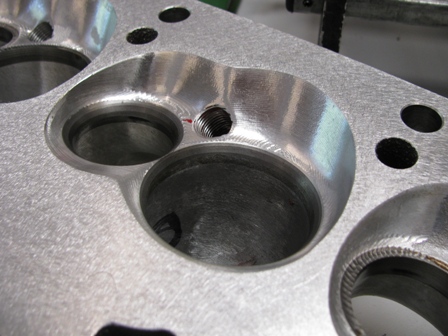

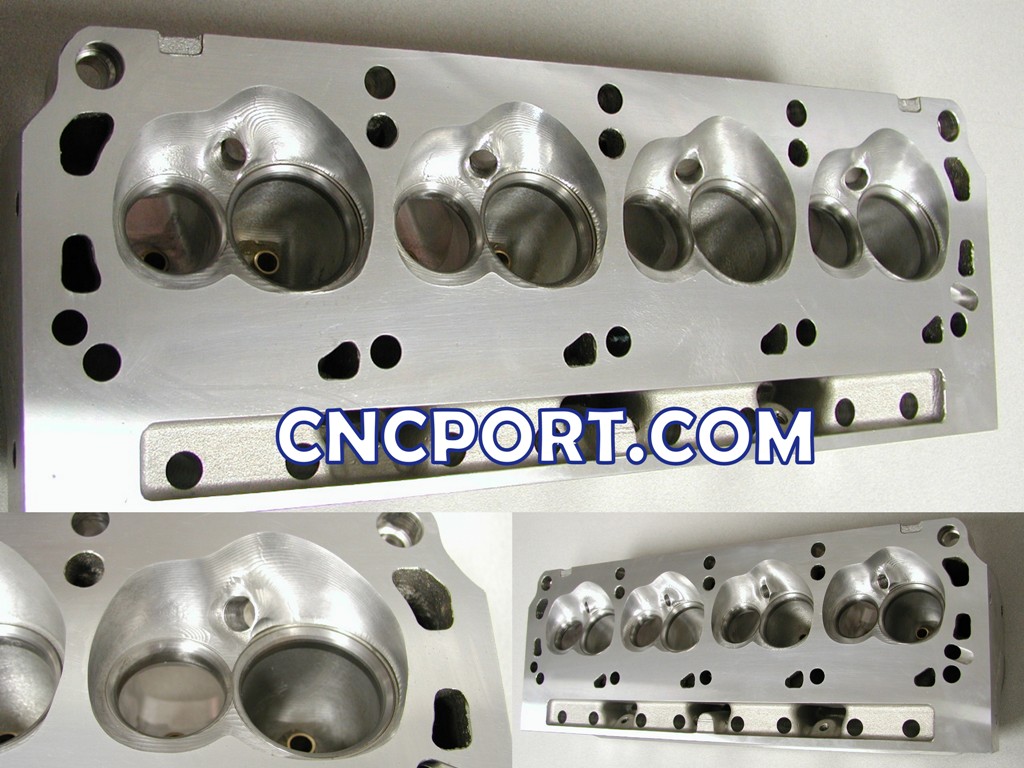

Edelbrock Ford Victor Jr. 227cc

5-Axis CNC Porting and SERDI Competition Valve Job. Intake 2.050 to 2.080 Exhaust 1.600 Excellent Upgrade for Stroked Windsor Motors without changing Castings. New Castings Available. 4.030 Chamber & 4.125 Chamber Available. 2.055 Valve Program Available for Small Bore.

$1000.00



Ford Modular Porting Programs

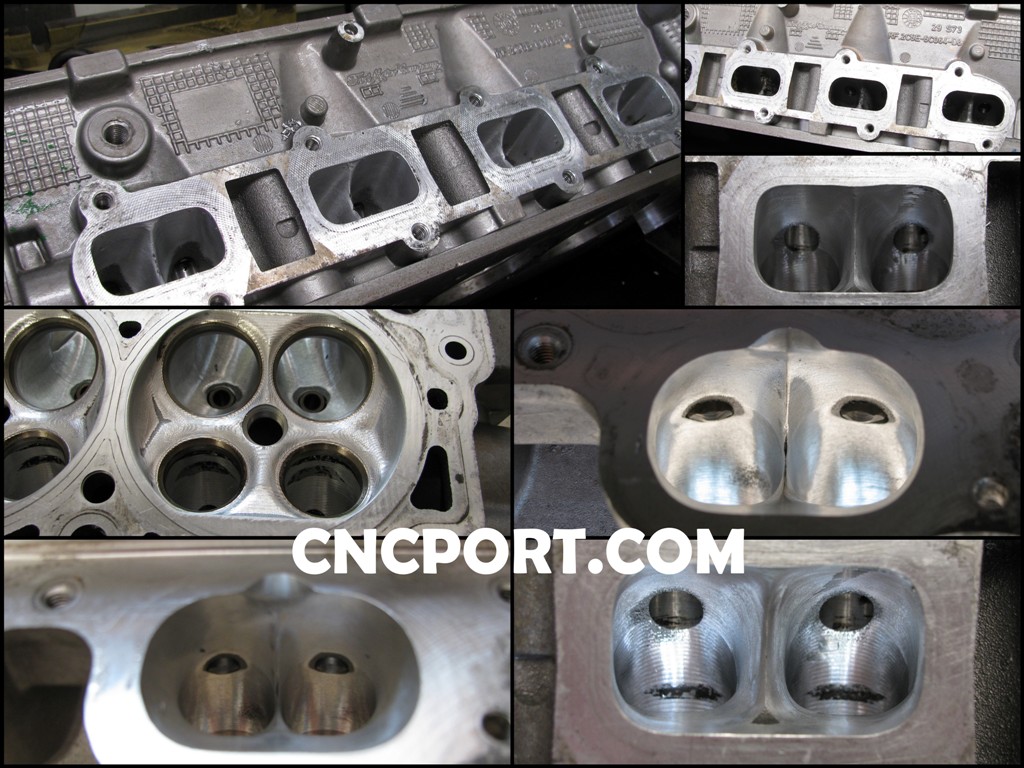

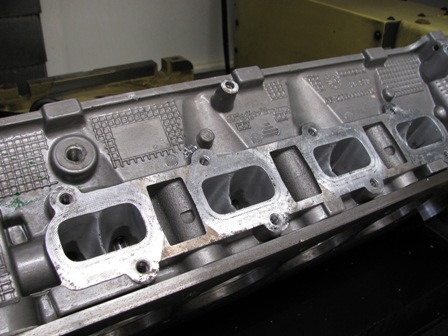

Ford Modular 03-04 Cobra 4-Valve

5-Axis CNC Porting of Intake and Exhaust Port, CNC Combustion Chamber and SERDI Competition Valve Job. Port designed for Stock Size Valves. Call/Email for Flow Numbers

$1500.00

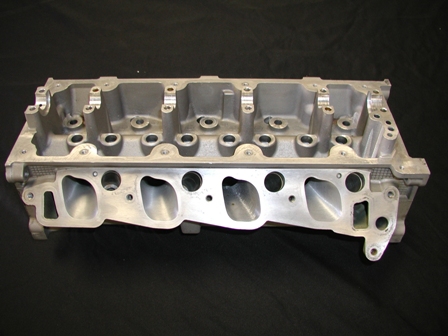

Ford Modular 4.6L 2-Valve 5.4L "PI"

5-Axis CNC Porting and SERDI Competition Valve Job. Port designed for +1mm Valves. 1999-2004 2V PI 4.6L Mustang and 5.4L Lightning. Muliple Chamber Shapes. Flow Numbers Available. ATT: Engine Builders- Available without Valve Job.

$1000.00



4-Valve Porting Programs

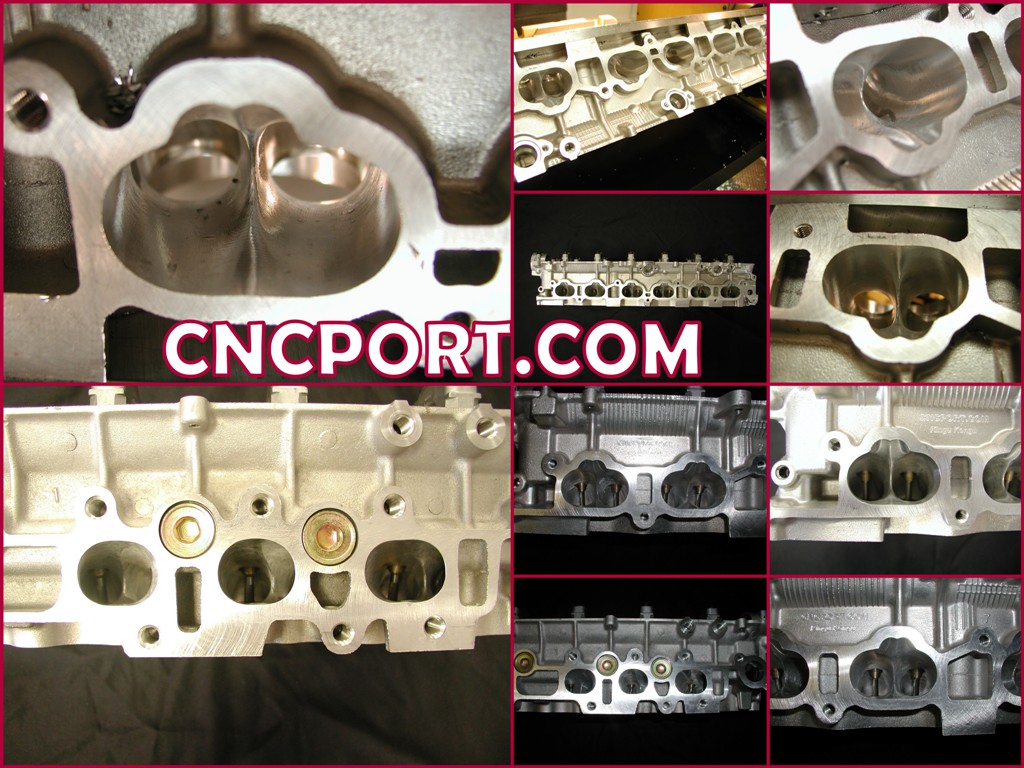

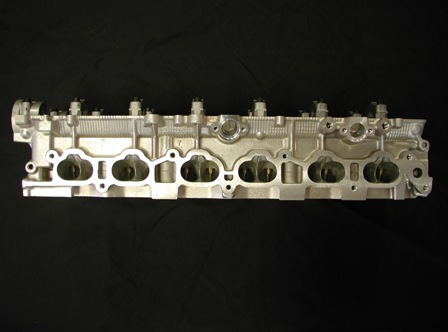

Toyota 2JZGTE Supra "Kingu Kongu"

Yes the long Anticipated King of All Cylinder Heads has finally arrived! These 5-Axis CNC Ported Intake and Exhaust Ports will give you the winning edge. Our Port is Designed for +1mm Valves. Call For Flow #s. New Core & Racing Valvetrain is Additional.

$1500.00

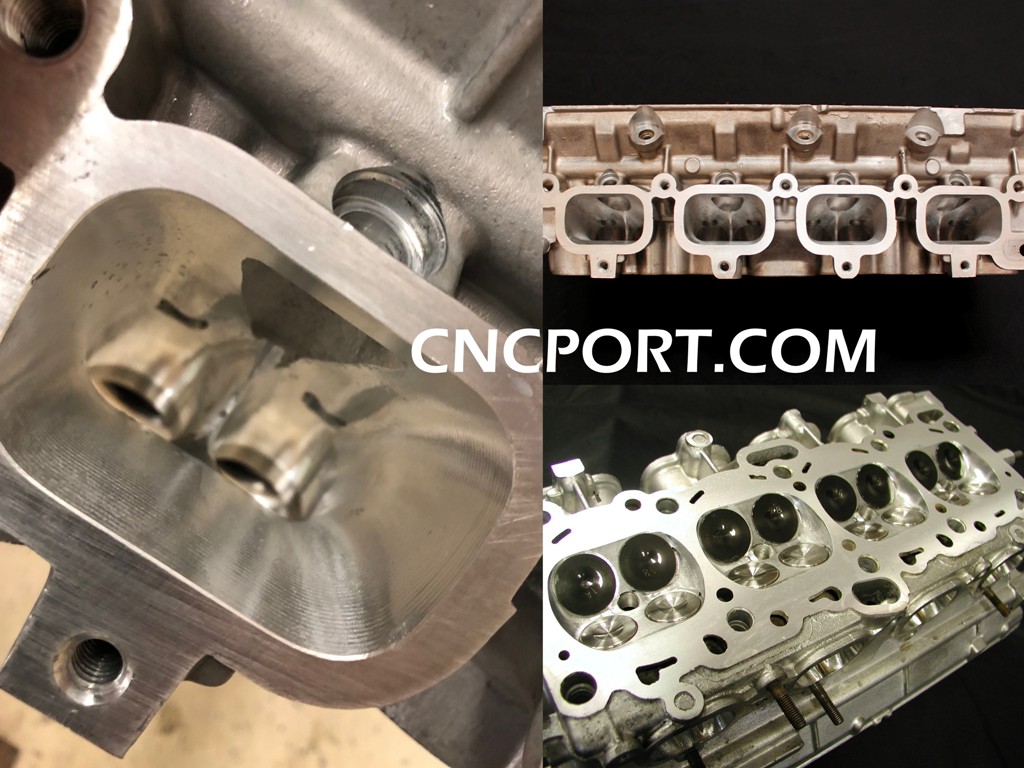

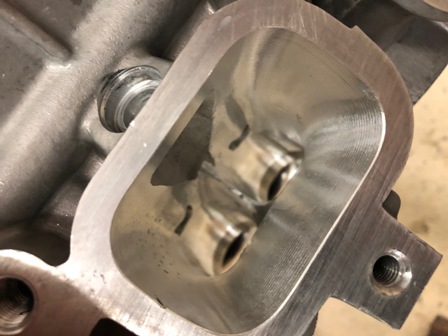

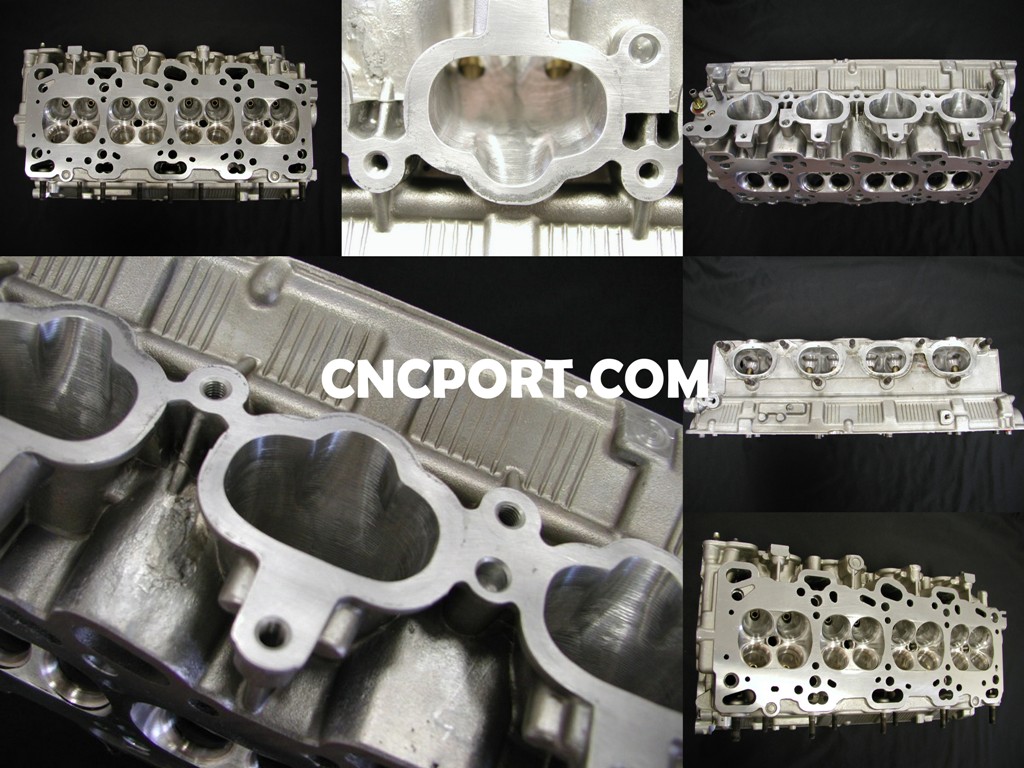

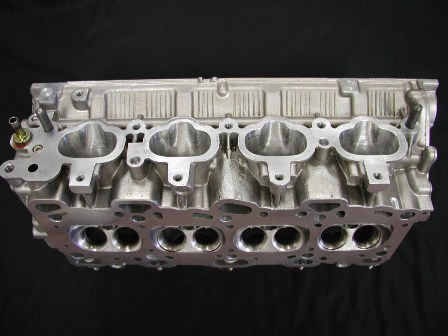

Mitsubishi Lancer EVO8 EVO9

5-Axis CNC Head Porting, CNC Chambers, SERDI Competition Valve Job, Manganese Bronze Guides. +1mm Int, +1mm Exhaust or +2mm Exhaust. Call for Flow Details.

$1195.00

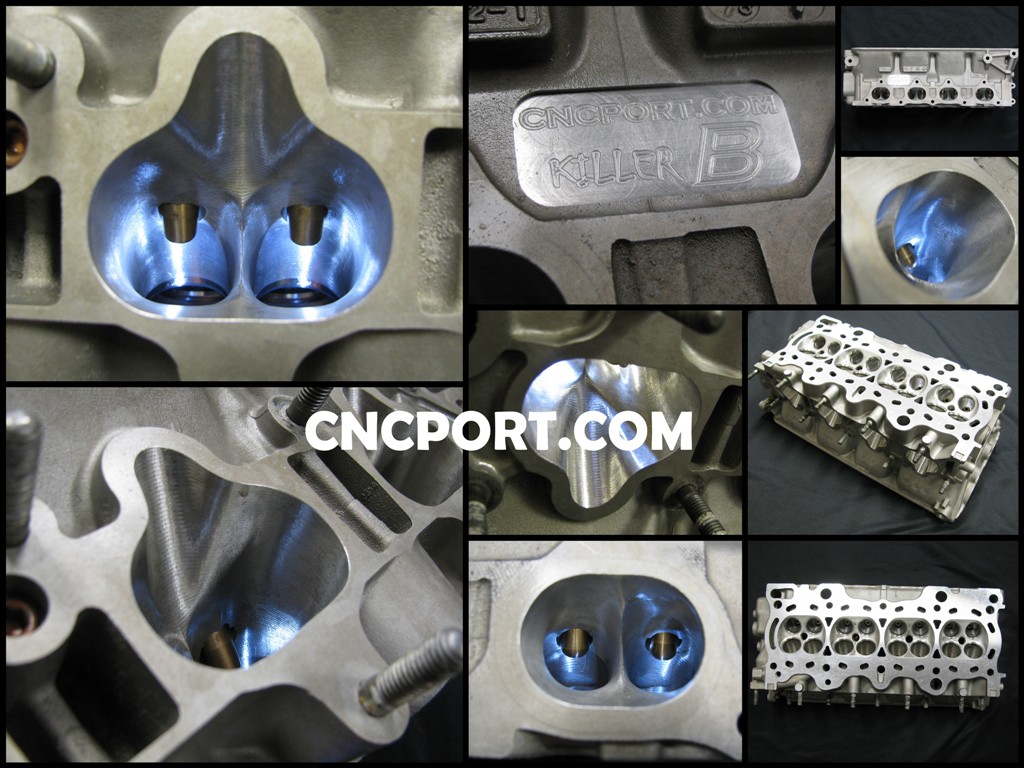

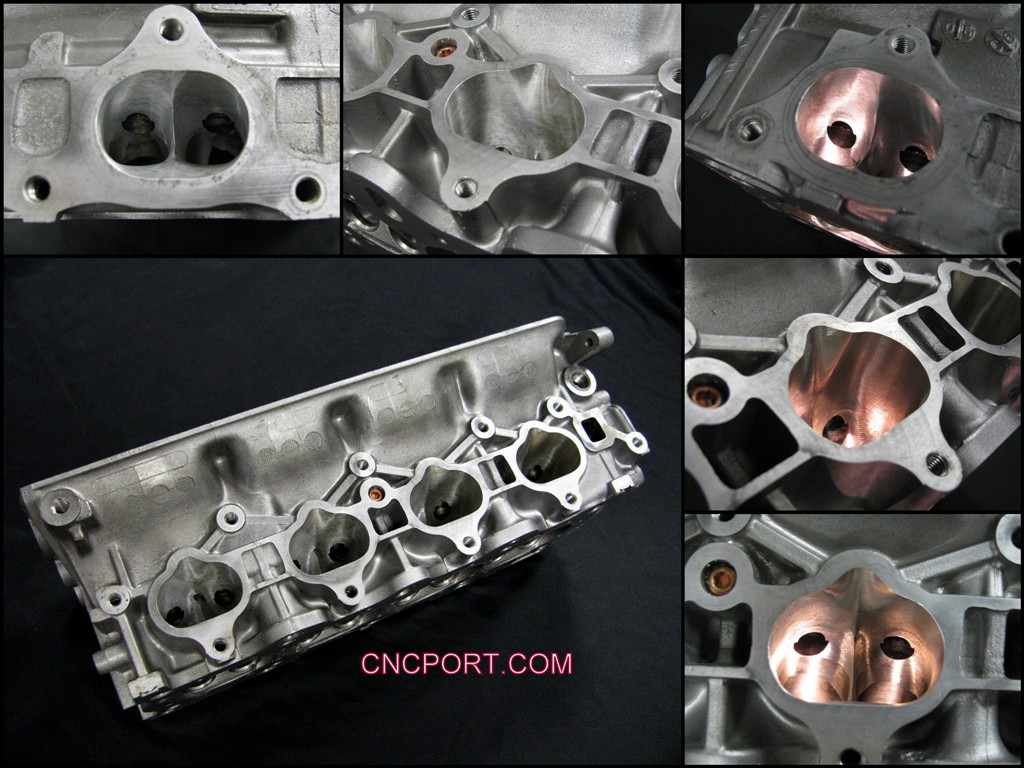

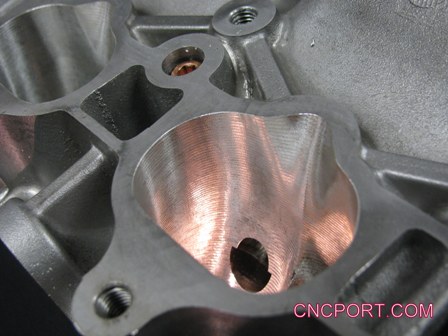

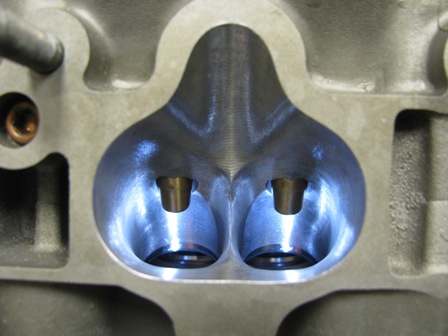

Honda GSR P72 CNC Porting

5-Axis CNC Head Porting, CNC Chambers, SERDI Competition Valve Job, Manganese Bronze Guides. Designed for Stock or +.5mm Oversize Valves. Call or Email for Flow Details.

$995.00


Honda Type-R PR3 B18C5

5-Axis CNC Head Porting, CNC Chambers, SERDI Competition Valve Job, Manganese Bronze Guides. Designed for Stock or +.5mm Valves. Call/Email for Flow Details.

$995.00

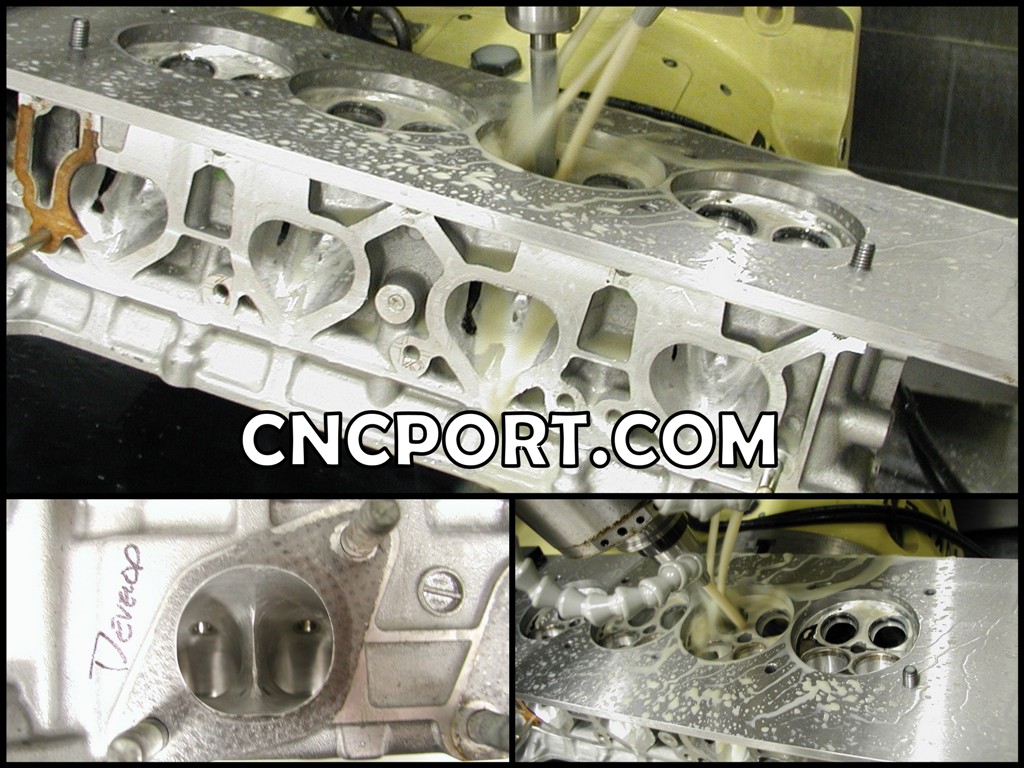

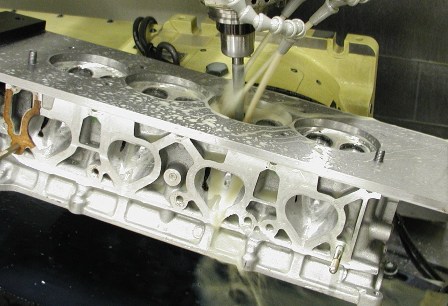

Nissan 240SX KA24

5-Axis CNC Porting, CNC Combustion Chambers, New Bronze Guides, Diamond-Honed Guides to Spec, SERDI Competition Valve Job Port Designed Around +1mm Valves. Flow Numbers Available upon Request. Valvetrain Packages Available.

$1095.00

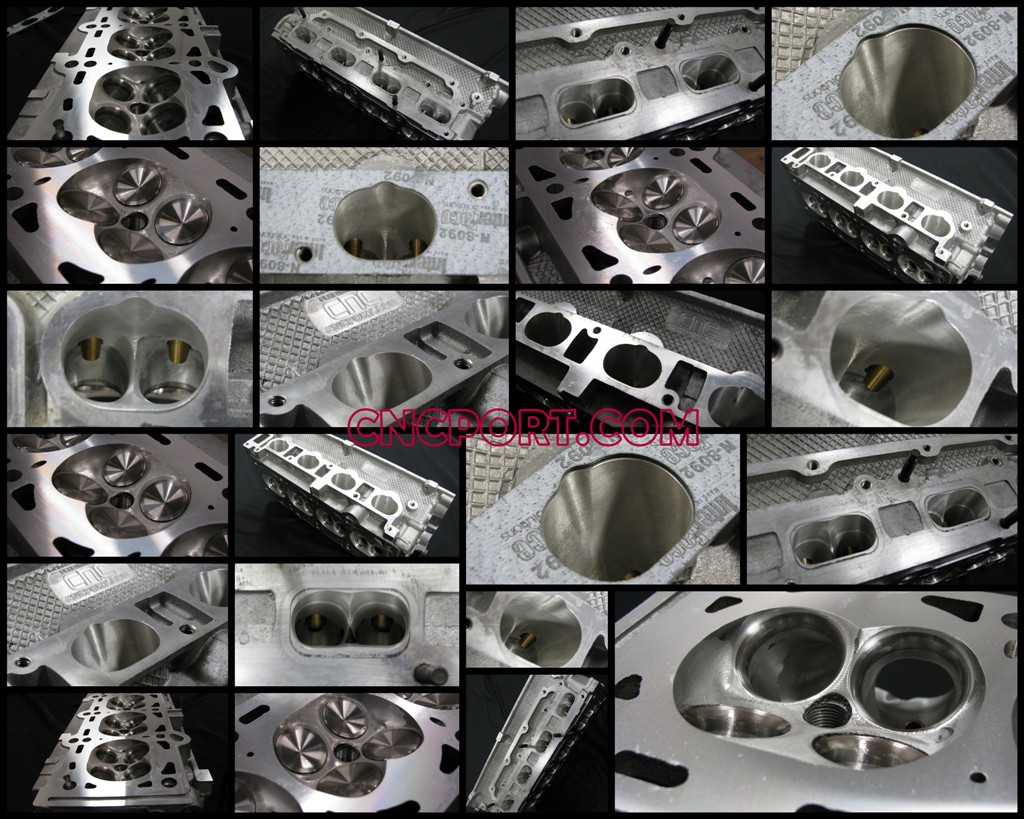

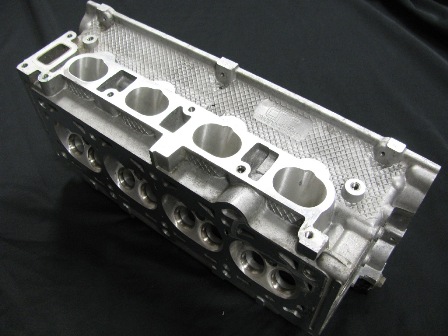

Dodge Neon SRT-4

Time to Wake up the Dodge!

5-Axis CNC Porting - Intake Port is Gasket Matched, CNC Combustion Chamber, Manganese Bronze Valve Guides ~ Diamond Honed to Spec, SERDI Custom Valve Job, Intake Valves (36mm)+1mm, Exhaust Valves (30.5MM)+2mm, BC 95# Valve Springs with Titanium Retainers, Single Groove Valve Locks, Viton Valve Seals, Decked, Hot-Tanked, Assembled & Shipped within U.S. Send your cylinder head.

$1690.00



Motorcycle Porting Programs

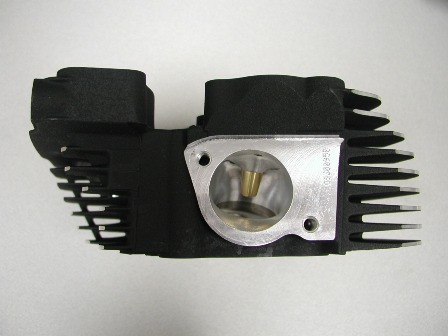

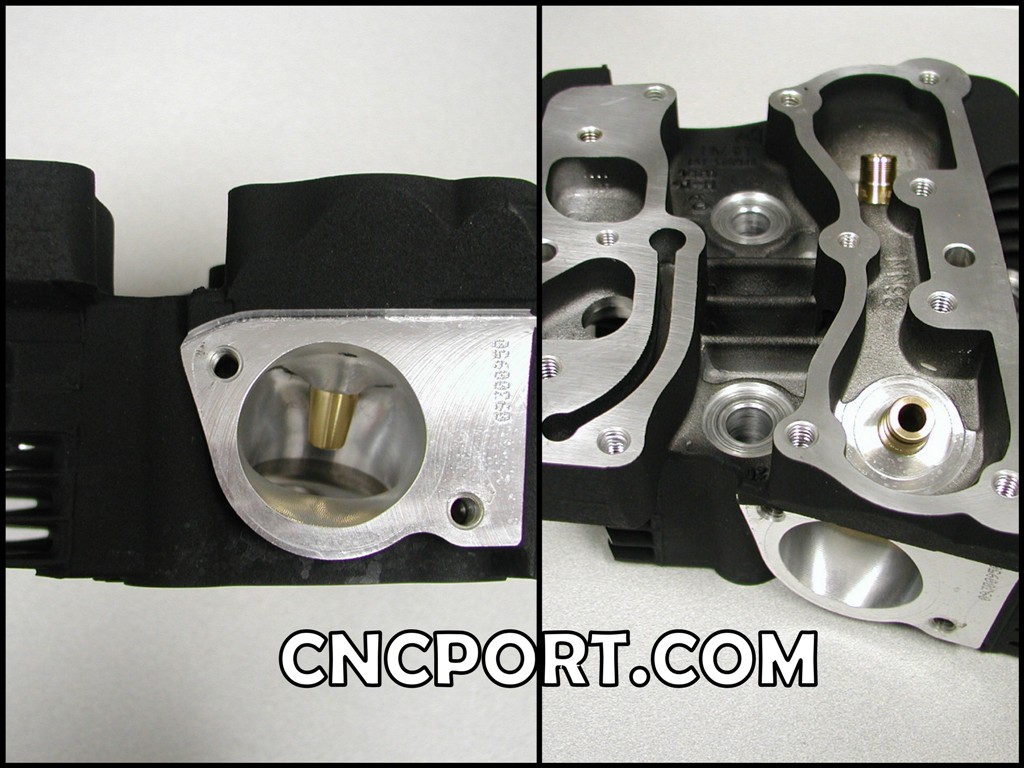

Harley Davidson Twin Cam Heads

5-Axis Harley TC88 Cylinder Head Porting. Designed for 1.900" Intake and 1.570" Exhaust Valves. Manganese Bronze Guide Upgrade. Over 60 cfm Gains on the Intake Port. This port is designed for Baggers for Everyday Street Riding/Cruising, this port was not designed for drag racing. We will port YOUR castings for this price. Used Clean Cores Available add $300.00

$675.00

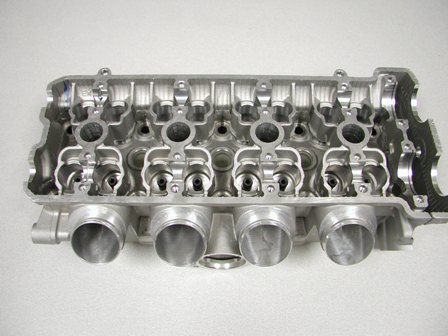

Suzuki Hayabusa GSXR1300 99-07

5-Axis CNC Porting of Intake and Exhaust Port. Designed for +1mm Intake and Exhaust Valves. NEWEN BB Valve Job to Spec. Avaialable with CNC Work Only. Call.

$1000.00
